| Model | Capacity (m³) | Mass (kg) |
| 1400 SR | 1,4 | 620 |
| 1800 SR | 1,8 | 650 |
| 2000 SR | 2 | 650 |
| 2200 SR | 2,2 | 670 |
| 2400 SR | 2,4 | 680 |
| 2460 SR | 2,46 | 690 |
| 2500 SR | 2,5 | 700 |
| 2600 SR | 2,6 | 700 |
| 2660 SR | 2,66 | 710 |
| 2900 SR | 2,9 | 730 |
| 2960 SR | 2,96 | 735 |
| 3000 SR | 3 | 720 |
| 3200 SR | 3,2 | 740 |
| 3400 SR | 3,4 | 770 |
| 3500 SR | 3,5 | 770 |
| 3700 SR | 3,7 | 790 |
| 3800 SR | 3,8 | 820 |
| 4000 SR | 4 | 830 |
| 4500 SR | 4,5 | 880 |
The reliable partner
on the slope
The Stöckl side spreader stands for an optimal spreading pattern and comfortable, as well as efficient, operation.
We offer attachment components to fit our spreaders to all common transporters, as well as special solutions for vehicles outside of our standard program upon request
-
Models
-
Mistral
-
Economy
Model Capacity (m³) Mass (kg) 1400 SE 1,4 620 1800 SE 1,8 650 2000 SE 2 650 2200 SE 2,2 670 2400 SE 2,4 680 2460 SE 2,46 690 2500 SE 2,5 700 2600 SE 2,6 700 2660 SE 2,66 710 2900 SE 2,9 730 2960 SE 2,96 735 3000 SE 3 720 3200 SE 3,2 740 3400 SE 3,4 770 3500 SE 3,5 770 3700 SE 3,7 790 3800 SE 3,8 820 4000 SE 4 830 4500 SE 4,5 880
-
-
Tech
Click on the different headlines, for an throughout description.
-
Hydraulic scraper floor drive
The powerful hydraulic scraper floor motor drives the scraper floor chain. The scraper floor rails are attached to the scraper floor chain with clamping elements, allowing them to be rearranged, exchanged, added, or removed at any time as desired.
The chain also benefits from this type of attachment, as it can be designed as a continuous chain, making it more stable.
-
-
Turbine
The spreading material is first chopped up in the turbine by the planetary cutter and then transported to the spreading unit by the feeder rotor. The planetary cutter and the feeder rotor are mechanically driven by a chain drive from the PTO shaft. Depending on the size of the side spreader, three or four blades are installed on the planetary cutter to ensure that the spreading material is optimally chopped. These blades are robustly designed and can be sharpened if necessary.
For cleaning after spreading, the turbine is equipped with a cleaning flap. This can be opened to comfortably remove any residues in the turbine during cleaning.
-
-
Spreading unit
Because the spreading angle is adjustable it is possible to position the spreading material precisely, which results in more efficiency when fertilizing and frustration free working conditions.
We offer two types of spreading units.

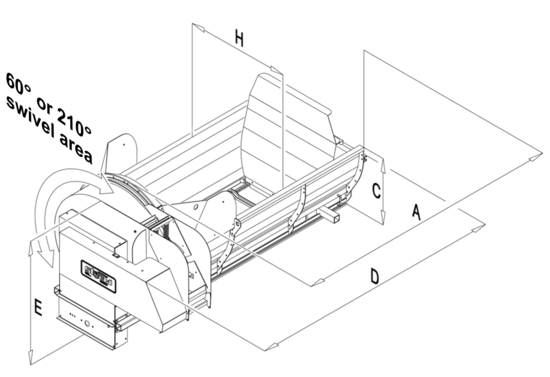

The Mistral series , which can rotate the spreading unit 210° and the slightly less expensive Economy series, which can rotate 60°.The hardened beater knives ensure an optimal and fine distribution of the spreading material. By hardening the wear resistance of the beater knives is vastly improved, ensuring an long lifetime.
The fine spreading pattern helps reducing weed growth and enables fertilizing inbetween growing seasons since the spreading material rots faster due to the smaller particle size.
-
-
Requirements for the drive vehicle
For operating our Lateral Manure Spreader the driving vehicle must be equipped with two double-acting control units. For vehicles without onboard hydraulic system or with only one control unit we offer the following optional addons:
If you have any questions or require further assistance, please do not hesitate to contact us or our sales partners.
Option Description Changeover valve For vehicles with only one double acting control unit. Supplementary control unit Attached to the spreader, ideal for vehicles with an single acting control unit(for example: Tilt connection + return or only one double-acting control unit) Hydraulic accumulator For actuating the swiveling motion on the spray unit with an single acting control unit Spray volume regulator Suitable for vehicles equipped with an hydraulic system without flow regulator, for continuously variably adjusting the speed of the scraper floor. Hydraulic accumulator with spray volume regulator and control unit For vehicles without onboard hydraulic system
-
-
Specialized solutions
Depending on customer requirements, we can also develop customised solutions that are precisely tailored to your application. For example, the mounted-sidespreader can be adapted to be mounted on tracked vehicles.
Our engineering department will find the right solution for you!
Another example of an specialized solution is the trailer frame for the mounted-sidespreader.
The mounted-sidespreader can be quickly and easily mounted on the trailer frame using the attachment parts of the transporter. This makes it possible to use an spreader meant for mounting on the drive vehicles as a towed machine with for example a normal tractor.
-
-
